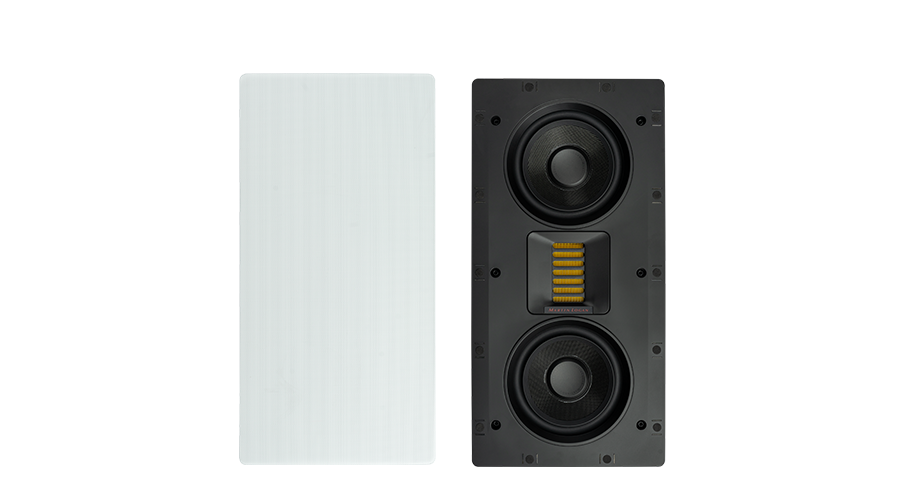

Martin Logan Motion XT XTW5 LCR In-Wall Speaker

Dual 5.25 Kevlar Drivers woofers Inwall LCRThe smaller of the two “LCR” models in the Motion XT CI series, the XTW5-LCR functions equally well as a center, front or surround channel, or anywhere higher performance and/or a more rectangular shape is desired. A perfect complement for a flat panel TV or projector screen; the XTW5-LCR allows for flexible placement and incredible performance. Its FMT XT tweeter can be rotated to help create the sound dispersion that works best for your space.

The MartinLogan Motion XT CI series takes performance to the next level over Motion CI. The Folded Motion XT tweeter gives each model in the Motion XT series even more of the clarity, output and efficiency that the standard size FMT is famous for. With Motion XT, we wanted to increase all aspects of performance over the Motion series, so we didn’t just stop at the tweeter. All Motion XT models feature woven Kevlar woofers for increased rigidity and lightness as well as a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. In addition to the larger tweeter, and lighter, stronger woofers, MartinLogan’s design and engineering team has fitted the Motion XT series with a more substantial chassis to strengthen the speaker and provide a more accurate sound, similar to a better cabinet on a traditional speaker. The Nomex layer and the chassis are not something you can see after installation, but it matters to the performance of the speaker, so it matters to us. With Motion XT CI, the difference is in the details.

The Sound of Invisibility: Folded Motion® Tweeters

MartinLogan's signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that "squeezes" air, thus requiring significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that delivers much of the high-frequency detail, speed and response of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters advance thin-film transducer technology even further with a 40% larger radiating surface and 80x30-degree controlled dispersion. This upgrade increases audible bandwidth without sacrificing detail and reduces distortion to an incredibly low level while increasing efficiency and the tweeter's already lightning-fast response time. The result is superior realism and alarming specificity that is aurally astounding, and only by MartinLogan.

Woven Kevlar Cones

All Motion XT CI speakers feature very lightweight woven Kevlar cones specifically engineered to keep pace with the lightning speed of our highest performance Folded Motion Tweeter XT. While these high-performance drivers offer both increased rigidity and lightness, we took an extra step by adding a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. This layer is not something you can see after installation, but it matters to the performance of the speaker, so it matters to us.

Spring-Loaded Binding Posts

With easy pre-installation access, our spring-loaded binding posts feature a large 4.5mm wire access hole and connect via banana plug, pin, or 12AWG bare wire.

Micro-Perforated Grilles

All MartinLogan architectural speakers feature an ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation.
